1550nm 12W MM HHL Package Laser Diode
|
|
 |
|
|
|
Specifications
|
|
Model |
SL-1550nm-MMF-12W-HHL |
|
Parameter |
Symbol |
Value |
Unit |
|
LD Reverse Voltage
|
Vr |
2.0 |
V |
|
PD Operating Current |
If(PD) |
- |
mA |
|
PD Reverse Voltage |
Vr(PD) |
- |
V |
|
Operating Temperature |
Top |
+15~+35 |
＜C |
|
Storage Temperature |
Tstg |
-40~+65 |
＜C |
|
Lead soldering temperature (10
sec.) |
Tis |
260 |
＜C |
|
Features:
1550nm HHLpackage
PD Optional Built-in TEC Cooling
Aiming Beam Optional |
|
Applications:
Medical laser treatment
Fiber Laser Others. |
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧
|
1530nm
|
1550nm |
1570nm |
|
Spectral Width (FWHM)
|
- |
3nm |
- |
|
Output
Power from fiber
|
- |
12W
|
- |
|
Fiber Core
|
600um
Multimode
|
|
Fiber Numerical Aperture
|
0.22
(0.37N.A. Optional)
|
|
Fiber Length |
- |
100cm |
- |
|
Connector Type |
SMA905/ST/FC |
|
Temperature Coefficient of
Wavelength |
- |
0.28nm / ＜C |
- |
|
Threshold Current (Typ.) |
- |
350mA |
- |
|
Operating Current (Typ.) |
- |
3.2A |
- |
|
Operating Voltage |
- |
24V |
- |
|
Recommended Case Temperature
|
- |
25＜C |
- |
|
TEC Max. Current |
- |
- |
- |
|
TEC Max. Voltage |
- |
- |
- |
|
Package Style |
HHL
|
|
Aiming Beam |
Optional |
|

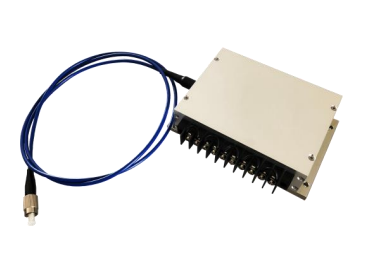

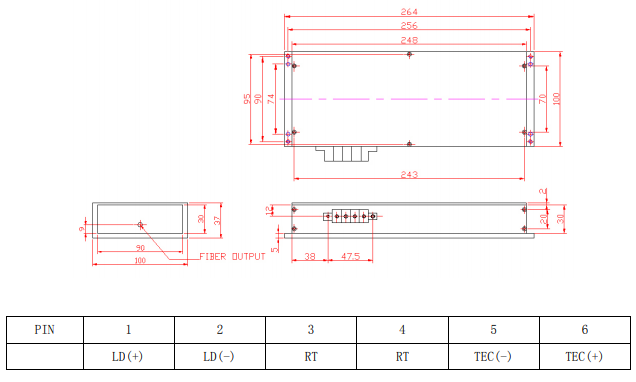

HHL Package View |
|
 |
|
Electrically shorten LD module
and store in non-extreme conditions. Suggest using the constant
current power supply. |
