1550nm 600mW MM 9-Pin Package Laser Diode
|
|
 |
|
|
|
Specifications
|
|
Model |
SL-1550nm-MMF-600mW-HT |
|
Parameter |
Symbol |
Value |
Unit |
|
LD Reverse Voltage
|
Vr |
2.0 |
V |
|
PD Operating Current |
If(PD) |
- |
mA |
|
PD Reverse Voltage |
Vr(PD) |
- |
V |
|
Operating Temperature |
Top |
+15~+35 |
＜C |
|
Storage Temperature |
Tstg |
-40~+65 |
＜C |
|
Lead soldering temperature (10
sec.) |
Tis |
260 |
＜C |
|
Features:
1550nm 9-pin package
PD Optional Built-in TEC Cooling
Aiming Beam Optional |
|
Applications:
Medical laser treatment
Fiber Laser Others. |
|
|
Min |
Type |
Max |
|
Center Wavelength@25≧
|
1530nm
|
1550nm |
1570nm |
|
Spectral Width (FWHM)
|
- |
4nm |
- |
|
Output
Power from fiber
|
600mW |
-
|
650mW |
|
Fiber Core
|
200um (105um
400um Optional)
|
|
Fiber Numerical Aperture
|
0.22
(0.37N.A. Optional)
|
|
Fiber Length |
- |
80cm |
- |
|
Connector Type |
SMA905/ST/FC |
|
Temperature Coefficient of
Wavelength |
- |
0.28nm / ＜C |
- |
|
Threshold Current (Typ.) |
- |
350mA |
- |
|
Operating Current (Typ.) |
- |
3A |
- |
|
Operating Voltage |
- |
1.3V |
- |
|
Recommended Case Temperature
|
- |
25＜C |
- |
|
TEC Max. Current |
- |
4A |
- |
|
TEC Max. Voltage |
- |
9.8V |
- |
|
Package Style |
9-pin HHL
|
|
Aiming Beam |
Optional |
|

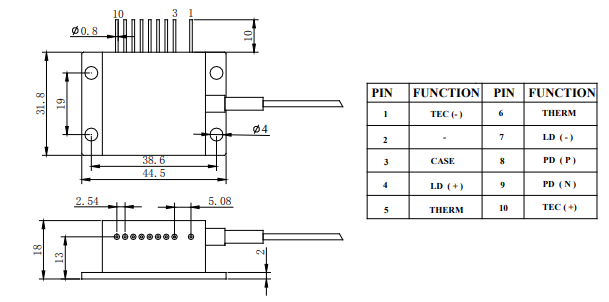

9-pin Package View |
|
 |
|
Electrically shorten LD module
and store in non-extreme conditions. Suggest using the constant
current power supply. |
