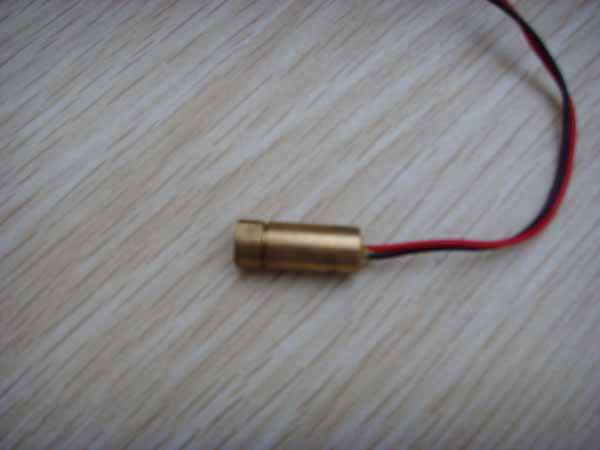

650nm 1-200mW Red
Laser Module
with DC Adapter
|
|
|
 |
|
 |
 |
|
Specifications
|
|
Model
|
SL-650nm-RLM-DC |
|
Wavelength
|
650nm(red)
|
|
Output power
|
1-200mW |
|
Beam Mode
|
Dot |
|
Operation Mode |
CW |
|
Beam diameter at the aperture (mm)
|
<2mm |
|
Operating current |
<180mA |
|
Operating Voltage
|
3-5VDC |
|
Operating temperature
|
-10¡æ¡«40¡æ
|
|
Storage
temperature
|
-30¡æ¡«60¡æ
|
|
Included |
DC Adapter |
|
Expected operating
lifetime
|
> 5000 hours
|
|
Dimensions |
¡é16¡Á80mm,¡é20¡Á100mm,¡é22x110mm |
|
Warranty time |
One year |
|
Choice
Mounting Brackets
|
 |
|
