DPSS 671nm 300-1000mW Red Laser
|
|
|
|
|
Specifications
|
|
Model
|
SL-671nm-XXXT
|
|
Output
Power @ 25 ¡æ
|
300-1000mW
|
|
Wavelength
|
671nm
|
|
Operation
Mode
|
CW, Near TEM00
|
|
Power stability
(rms, over 2 hours)
|
<5%
|
|
Warm-up time
(minutes)
|
<15
|
|
M2 factor
|
<2
|
|
Beam
Divergence (1/e2, Full Angle)
|
< 2mrad
|
|
Beam diameter
at the aperture (mm)
|
<3
|
|
Spectral
linewidth (nm)
|
<0.1
|
|
Polarization
ratio
|
>100:1
|
|
Operating
temperature
|
15¡æ¡«30¡æ
|
|

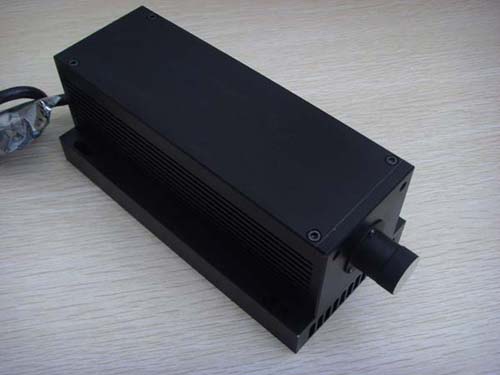

Dimensions of
Laser head (mm)
|
155
¡Á 77 ¡Á 60mm
|
|
Input Voltage
|
80-260VAC
|
|
Modulation
|
TTL or Analog Modulation
|
|

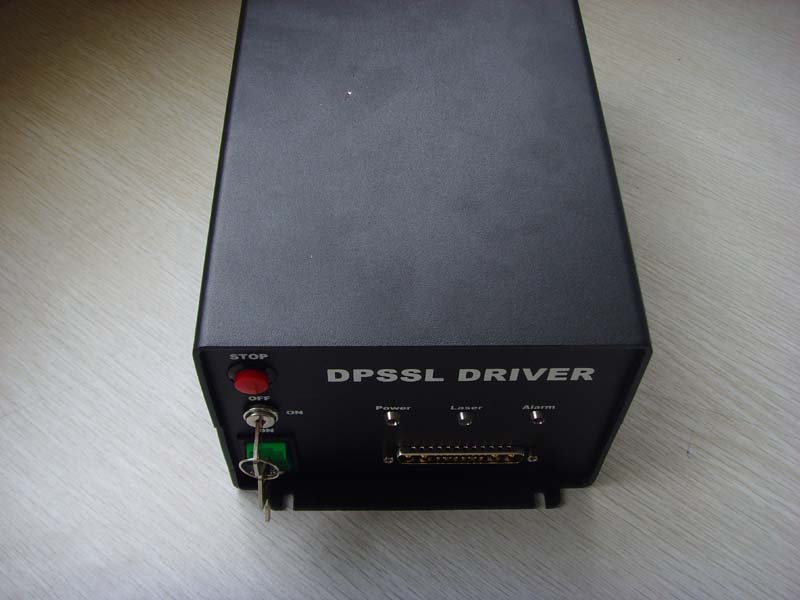

Dimensions of
power supply
|
238 x 146 x
94mm
|
|
Expected
Operating Lifetime
|
>10000 hours
|
|
Warranty time
|
One year
|
