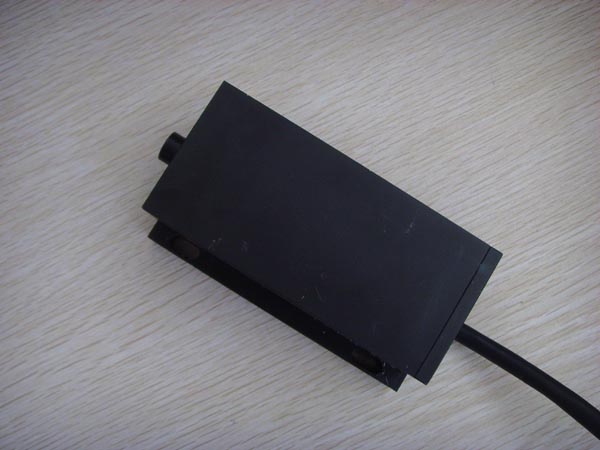

488nm
1-100mW DPSS Laser
|
|
|
.jpg)
|
|
Specifications
|
|
Model
|
SL-488nm-D-XXXT
|
|
Output
Power @ 25 ¡æ
|
1-100mW
|
|
Wavelength
|
488nm¡À1nm
|
|
Operation
Mode
|
CW,TEM00
|
|
Power stability
(rms, over 4 hours)
|
<10%
|
|
Warm-up time
(minutes)
|
<15
|
|
M2 factor
|
<1.5
|
|
Beam
Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter
at the aperture (mm)
|
<3.0
|
|
Polarization ratio
|
>100:1
|
|
Operating temperature
|
|
|
Input Voltage
|
80-260VAC
|
|
Modulation
|
TTL Modulation or Analog
Modulation
|
|
Expected Operating Lifetime
|
>10000 hours
|
|
Warranty time |
one year
|
