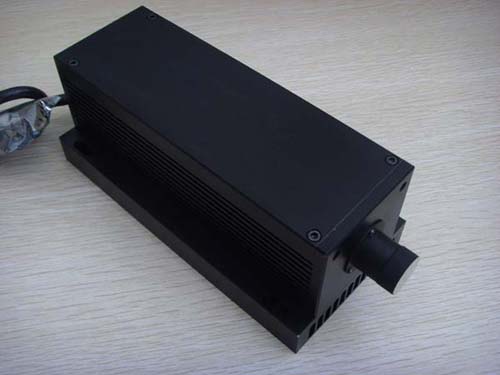

660nm
200-1000mW DPSS Laser
|
|
|
|
|
Specifications
|
|
Model
|
SL-660nm-XXXXT
|
|
Output
Power @ 25 ¡æ
|
100-1000mW
|
|
Wavelength
|
660nm¡À1nm
|
|
Transverse mode |
TEM00 |
|
Operation
Mode |
CW |
|
Power stability (rms, over 4
hours)
|
<5%
|
|
Warm-up time (minutes)
|
<10
|
|
M2 factor
|
<3.0
|
|
Beam Divergence (1/e2, Full Angle)
|
< 1.5mrad
|
|
Beam diameter at the aperture
(mm)
|
<3.0
|
|
Operating temperature
|
10¡æ¡«35¡æ
|
|
Input Voltage
|
80-265VAC
|
|
Modulation
|
TTL Modulation or Analog
Modulation
|
|
Expected Operating Lifetime
|
>10000 hours
|
|
Warranty time |
One year |
