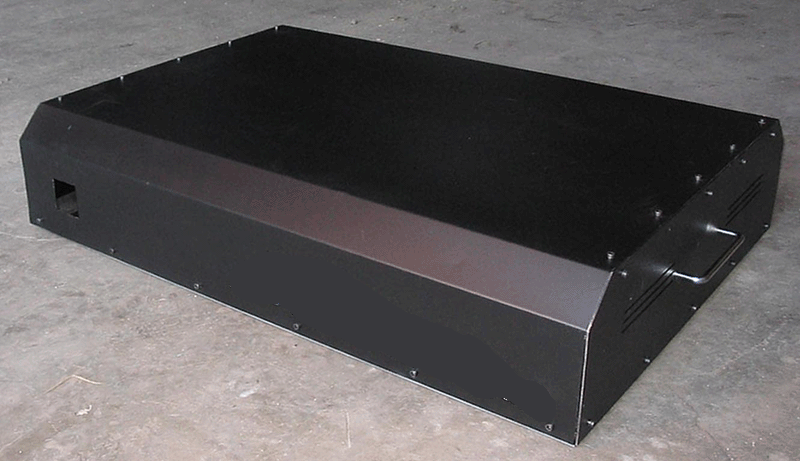

RG-635nm and 532nm Laser

Specifications

Model

SL-RG-XXX

Output Power @ 25 ¡æ

 >300mW (635nm red>180, 532nm green>120)

>500mW (635nm red red>300, 532nm green>200)

>800mW (635nm red red>500, 532nm green>300)

Wavelength

Red at 635nm, Green at 532nm

RG mixed to orange/yellow color

Operation Mode

CW,TEM00
Warm-up time (minutes)
<15
Beam Divergence (1/e2, Full Angle)
< 5mrad
Beam diameter at the aperture (mm)
<6
Operating temperature
10¡æ¡«35¡æ
Input Voltage 80-260VAC
Modulation
TTL Modulation or Analog Modulation
Expected Operating Lifetime
>5000 hours
